Sewing Resources and Information

skell

Moderator
Staff member
Joined
Oct 25, 2016
Messages
1,211
Location
Iowa
With the discussions on sewing (or thread injecting if you prefer), I think it may be beneficial to those interested if we had a single resource thread for sewing information. I know a number of the little things I’ve picked up along the way are scattered throughout the forum. Please, if you have tips or resources which may be useful to those interested in sewing DIY gear, post them here!

Some helpful tidbits copy and pasted from other threads courtesy of @ckossuth:

- IMPORTANT!!!!!! You need to make sure the machine can handle a thicker industrial thread and that you can find needles to handle the thread as well. Remember, if you're making a saddle, THIS THING IS HOLDING YOUR ASS 20 - 30 FEET OFF OF THE GROUND!!! MAKE SURE YOU ARE USING GOOD QUALITY THREAD/MATERIALS AND YOU HAVE COMPLETE CONFIDENCE IN YOUR SKILLS!

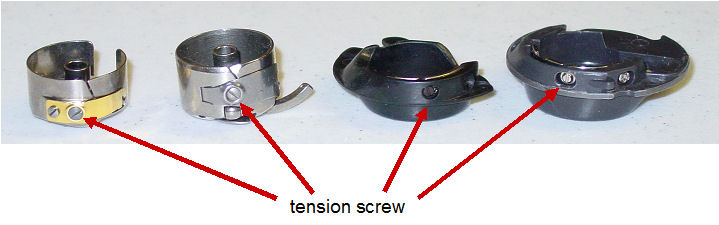

- Bobbin tension adjustment: Remember, we are not making dainty little dresses. We are making Man Gear! A seamstress will set their bobbin tension to where when holding the thread and letting the bobbin and cradle hang, it will very slowly start to fall. This is a good starting point (even for us). My personal preference (and this works on all 4 of my machines) is to tighten it to where when I'm holding the thread with the full bobbin in the cradle, I have to give the thread a little twitch to get the bobbin to start falling, and it only falls 6-8 inches before stopping again. Done. Set it and forget it. It's just one little screw. A little turn does go along way though.



This person almost has it right. The thread should be going into the slot in the bobbin cradle and then up under the tension spring. This is to show how you should let the fully loaded bobbin and cradle hang when adjusting the tension.


Here is a great diagram.


Advice for buying a sewing machine: find a decent used machine with metal gears (many machines from the 50’s and 60’s fit this bill). Another option...I know @g2outdoors has had good luck with his newer singer heavy duty. I don't recall which model thread injector it is. I'm sure if you ask, he'd be glad to fill that piece in.

I am no sewing expert. And I will not pretend to have much for answers. But I do tend to go overkill on research.
----------------
For anyone searching/shopping for an older all metal sewing machine...

I stumbled across a great blog series on how to identify models of older Singer sewing machines from terrible online photos (which are standard on craigslist). If you decide on a particular model, this 5 part series is extremely helpful.

A Visual Guide to Identifying Singers from Crappy Craigslist Photos, Part 1
http://vssmb.blogspot.com/2011/07/visual-guide-to-identifying-singers.html


Helpful websites I have found:

www.thethreadexchange.com

- Information on thread and needles. Also has definitions for terminology which can be very useful. If you click on a category (needles, polyester thread, etc) there is an information are with “buying guides.” These are very helpful in decoding what means what.

www.diygearsupply.com

- The website has a section of DIY guides. There is a sewing tips page that shows different seams. There are also a number of patterns for outdoor gear that may help with planning your own project.

https://sewsweetness.com/2014/11/tutorial-shoulder-pad-straps.html

- Tutorial on how to make pads for bag straps. For example…the Wild Edge bag really needs one of these if you are going to carry it for any length of time by its strap.

https://www.schmetzneedles.com/learning/pdf/schmetz-needle-chart.pdf

- Posted by @ckossuth in another thread. Good reference for type/size needle.

https://www.sailrite.com/How-to-Sew-Webbing-Loops (thanks @Homebrew454)

- Great page on things to think about when wanting to sew webbing.

Books

On Rope. This book contains a great deal of information on ropes and knots. There is also a small section on sewing webbing and the differing strengths of stitch patterns.

Google search for the book: HERE

Last edited:

skell

Moderator
Staff member
Joined
Oct 25, 2016
Messages
1,211
Location
Iowa
Videos

Great sewing instruction video for beginners. Easy to follow.

1st video in a 4 part series on sewing webbing

Seam construction/type’s video by Sailrite. Very easy to follow with info on seam strength.

DIY backpack video. I thought this was a good video to see how a backpack is put together. I picked up things from this to use in other projects.

EDIT: Sailrite Box X and breaking strength calculation video (thanks @bj139)

EDIT: Speedy Stitcher sewing video (thanks @bj139)

Last edited:

skell

Moderator
Staff member
Joined
Oct 25, 2016
Messages
1,211
Location
Iowa
I'm sure I am forgetting some at the moment. I will add as they come to mind.

One thing to add on thread. I know this the go to for @ckossuth when sewing heavy duty projects and if you search other outdoor forums, it seems the standard for thread/stitch strength and usability in a home sewing machine is Guterman TERA 40. You can find it here:
http://www.rockywoods.com/Gutermann-TERA-40-Polyester-Thread.

A quick google search on it and you can find plenty of info on forums regarding how good it is.

----------------------------

Polyester Thread Specs

from https://www.thethreadexchange.com/m...e=polyester-thread-information-specifications

Polyester Thread Specs.jpg

EDIT: Another thread spec chart. Courtesy of @bj139 in post #186

Thread Chart.jpg

EDIT: Found a great needle chart based on material types. Also some good additional info/tips at the bottom.


Last edited:

skell

Moderator
Staff member
Joined
Oct 25, 2016
Messages
1,211
Location
Iowa
For anyone searching/shopping for an older all metal sewing machine...

I stumbled across a great blog series on how to identify models of older Singer sewing machines from terrible online photos (which are standard on craigslist). If you decide on a particular model, this 5 part series is extremely helpful.

A Visual Guide to Identifying Singers from Crappy Craigslist Photos, Part 1
http://vssmb.blogspot.com/2011/07/visual-guide-to-identifying-singers.html


EDIT: This info has been added up top.

Last edited:

ckossuth

Well-Known Member
Vendor Rep
Joined
Feb 18, 2018
Messages
780
Location
Rolla, Missouri
It looks stout enough in the pics. Weird it doesn't have a strength rating though. I would definitely do up some samples to test for strength.


skell

Moderator
Staff member
Joined
Oct 25, 2016
Messages
1,211
Location
Iowa
With all the questions on thread lately, I've added polyester thread spec chart above in post #3. The chart also includes needle sizes for each thread size.

Polyester Thread Specs.jpg


skell

Moderator
Staff member
Joined
Oct 25, 2016
Messages
1,211
Location
Iowa
I've been looking at used machines for a long time now, lol. I found a PFAFF 332 for 145, seems like it would be heavy duty enough, not all that sure. I'm going to read the rest of this thread in detail tonight and watch the youtube video's, thanks again for the info gents.

https://washingtondc.craigslist.org/search/sss?query=heavy+duty+sewing+machine&sort=rel
Looks pretty capable from my quick Google search. Helpful tip when looking for info on a specific machine...search the Brand name and model number plus the word "webbing" or "cordura." Helps drill down the results. Will more closely relate to the heavier material sewing we are looking to do.

Sent from my LG-US701 using Tapatalk
